FURNACE & WATER HEATER VENTING INFORMATION
A complete diagram to show what you may need


= Items included in kits || = Shown in diagram

GAS/OIL Furnaces & Water Heaters
(Gas = 84% efficiency & higher)


CHIMNEY CAP
Choice of:
  • TOP KIT
  • RAIN CAP
    Will also need TOP CLAMP + STORM COLLAR + TOP PLATE , -or- EZ TOP PLATE , -or- EZ FLUE FIT TOP PLATE
  • SINGLE FLUE CAP
  • MULTI FLUE CAP

  • CROWN
    Item shown for identification only. We do not supply.

    LINER INSULATION
    Choice of:
  • BEST WRAP Insulation Kit
  • BEST MIX Insulation

  • CHIMNEY LINER
    Choice of:
  • TOP-Flex Oil/Gas Liner
  • TOP-Rigid Rigid Lining System for all fuels

  • TEE w/ REMOVABLE SNOUT
    Choice of:
  • TOP-Flex 2 Part Tee
  • TOP-Rigid 2 Part Tee

  • TEE END CAP
    Choice of:
  • TOP-Flex Tee End Cap
  • TOP-Rigid Tee End Cap

  • SLIP CONNECTOR
    Choice of:
  • TOP-Flex Slip Connector
  • TOP-Rigid Slip Connector



  • = Items included in kits || = Shown in diagram

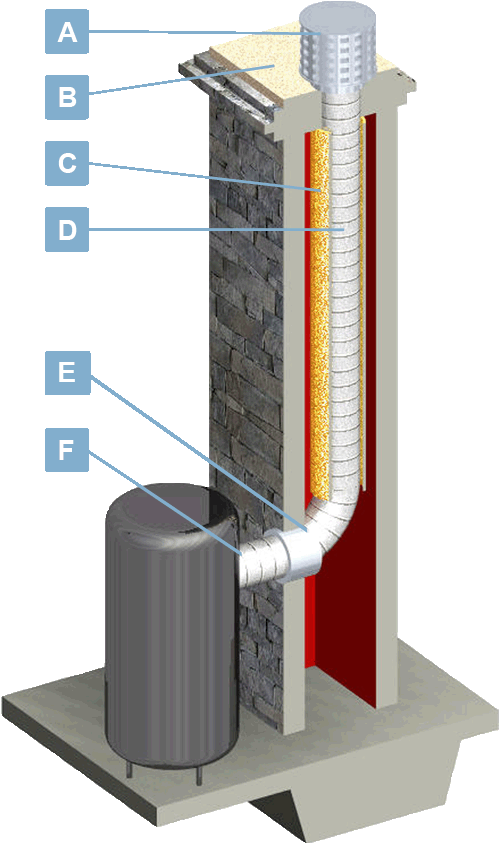

    GAS Furnaces & Water Heaters
    (Gas = 83% efficiency & lower)


    CHIMNEY CAP
    Choice of:
  • ALUMINUM CAP
  • MULTI FLUE CAP

  • CROWN
    Item shown for identification only. We do not supply.

    LINER INSULATION
    Choice of:
  • BEST WRAP Insulation Kit

  • CHIMNEY LINER
    Choice of:
  • TOP-Flex Aluminum Liners

  • MORTAR COLLAR
    Choice of:
  • TOP-Flex Aluminum Mortar Collar


  • CONNECTION

    Slip the end of the Aluminum Liner directly onto the outside of the unit's collar. Secure with Zip Screws.
